This product is a wireless remote control key, remote control equipment such as rolling shutter door and garage door within 50m-100m(free space). Bring you a new remote control experience, bring more convenience to your daily life.

NOTE – NOTE – NOTE”Remote Control cannot be cloned，

Access to receiver required. Please make sure you got access to your receiver/opener before purchase.

1. Please ensure that your receiver function is working properly before purchasing, because this product needs to be matched with your receiver first.

2. If you do not know what model your receiver is, please find customer service before purchasing.

3, Disclaimer: Your remote control must be consistent with the picture described by us, and your remote control brand and model must be in the compatibility list of the store, the merchant will not be responsible for the purchase error.

The product operation video can be paired by referring to the store video.

Operating voltage:2023DC3V

Working current: 2023-3V

Radiated power :12mw@3V

Transmitting frequency:433MHZ

Transmission distance :50-100M (wide ground, receiver sensitivity is negative 100dbm)

code.：scroll code

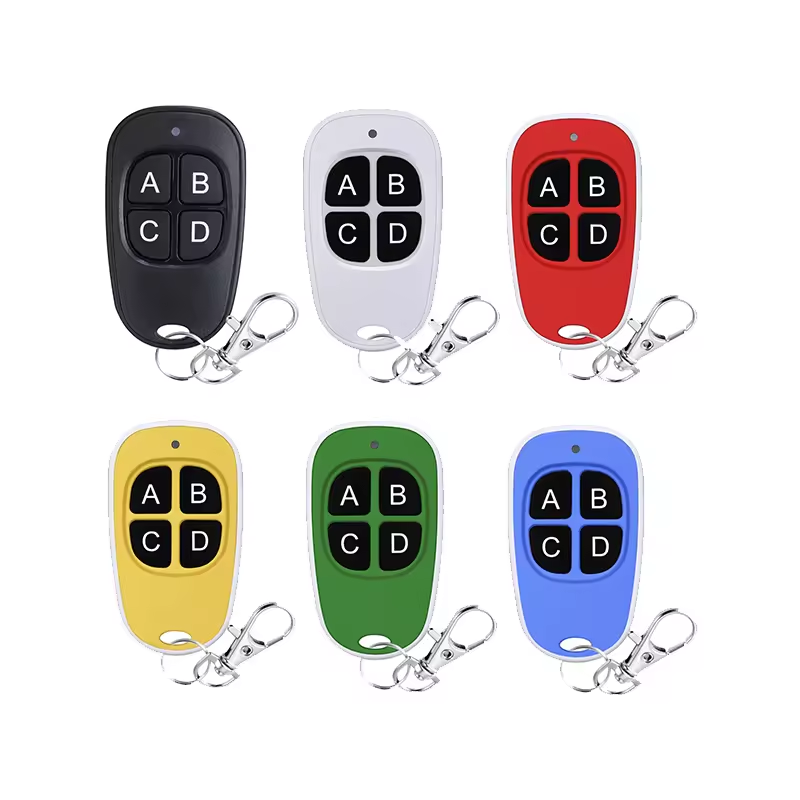

Color :Yellow, green, black, white, red, blue

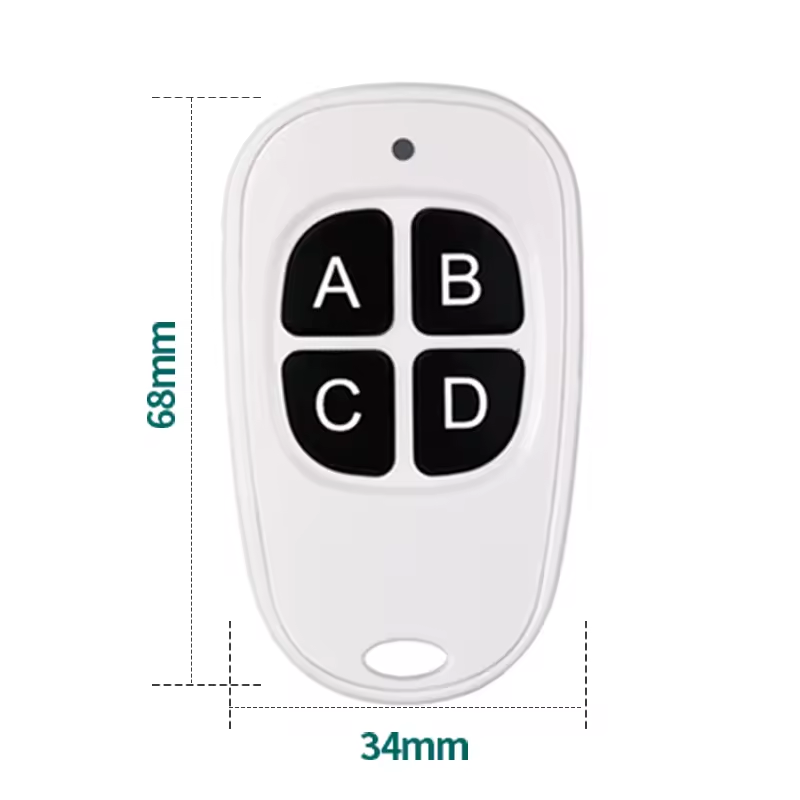

Size :5.9*3.4*1.2(cm)

Specifications:

FLO2R-S remote controls are compatible with receivers like:SMXI / OXI / FLOX2R / FLOX4R / SMX2R / OX2 / OX4T

FLO4R-S remote controls are compatible with remote controls like:

FLO1R-S, FLO2R-S, FLO4R-S, ON1, ON2, ON4, ON1E, ON2E, ON4E, FLO1RE, FLO2RE, FLO4RE, Very VR, INITI (all colors)

ERA INTI remote controls are compatible with remote controls like:

INTI1, INTI2;INTI1Y INTI2Y;INTI1L INTI2L;INTI1B INTI2B;INTI1R INTI2R;INTI1G INTI2G;INTI2Y/A, INTI2/A, INTI2L/A, INTI2B/A, INTI2R/A, INTI2G/A.

Note:

This transmitter will work work ONLY with receivers and remotes purchased outside of the USA!!!

Not compatible with remote controls like FLO1R-S/A, FLO2R-S/A, FLO4R-S/A -SMILO!!!

PROGRAMMING

The transmitter can be memorized in different ways, depending on the options of the receiver or control unit associated with the transmitter.

Then memorize the code of your transmitter on the receiver or control unit according to the procedure specified in the relative instruction manual

Package Included:

1* Remote control 1* Manual 1* rope
