78LM Multi-Function Garage Door Opener Control

Specification

1. Model：78LM
2. Type：Wall Button
3. Material：ABS
4. Color：Black
5. Frequency：315 MHz，390 MHz
6. Wired Version

WIRED CONTROL PANEL INSTALLATION INSTRUCTIONS

FOR USE WITH GARAGE DOOR OPENERS MANUFACTURED AFTER JANUARY 1,1995.
To ensure proper function of your opener,remove all old or previous push buttons/wall control panels.
Use only the enclosed door control for proper operation.

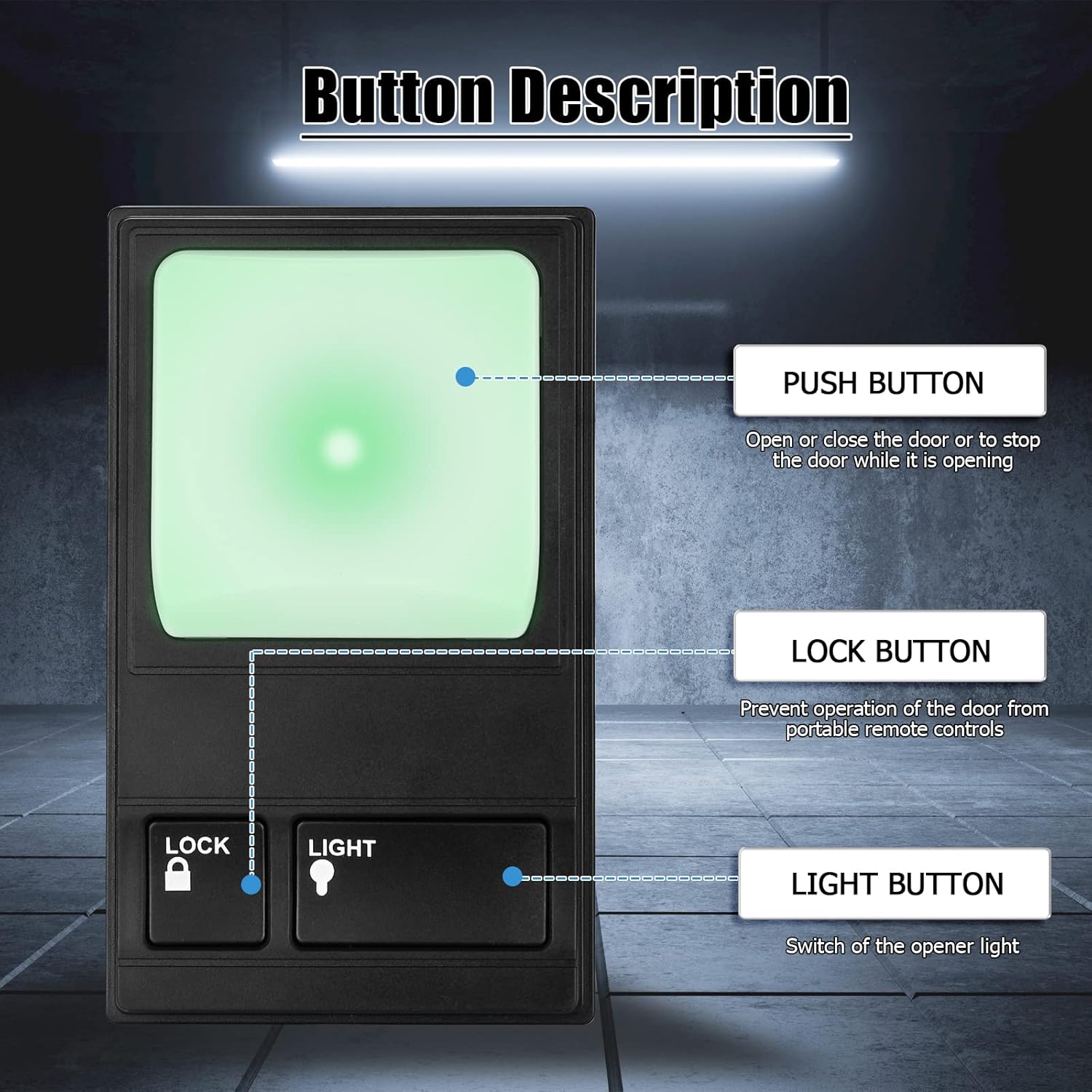

To activate:Press and hold the Lock button for 2 seconds.The push button indicator light will flash as long as the lock is on.
To turn off:Press and hold the Lock button again for 2 seconds.The indicator light will stop flashing.Normal operation will resume.
The Lock feat

Compatible Models

Green Learn Button (Billion Code, 390MHZ)
– Models: 1245, 1255,1270, 1280

Red/Orange/Amber Learn Button (Security+, 390MHZ)
– Models: 1245R/1255R, 1265R, 2220, 2245/2255, 2265, 2280, 2500, 2575, 2585, 2595

Purple Learn Button (Security+, 315MHZ)
– Models: 1345/1355, 1356, 3220, 3240, 3265, 3270, 3280, 3800, 35

Access to receiver required. Please make sure you got access to your receiver/opener before purchase.
